Corsac 5x30 Prism Scope
説明

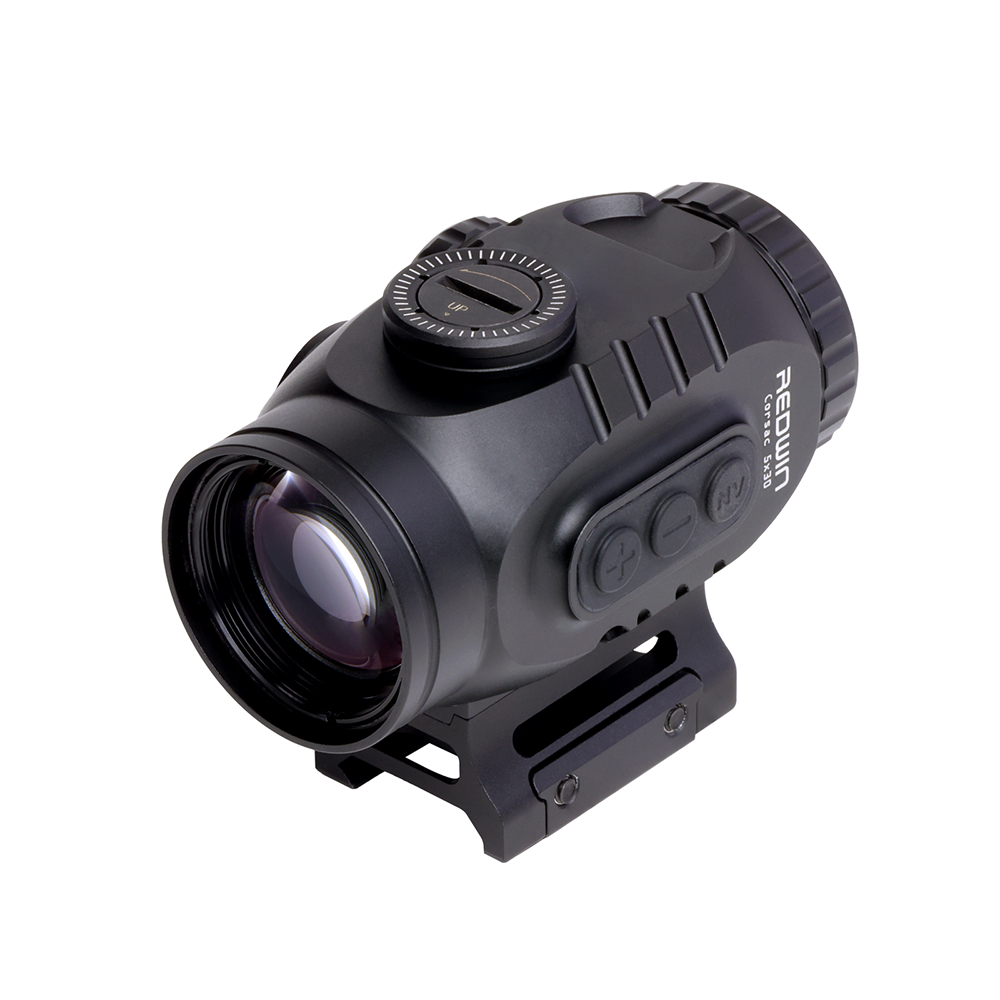

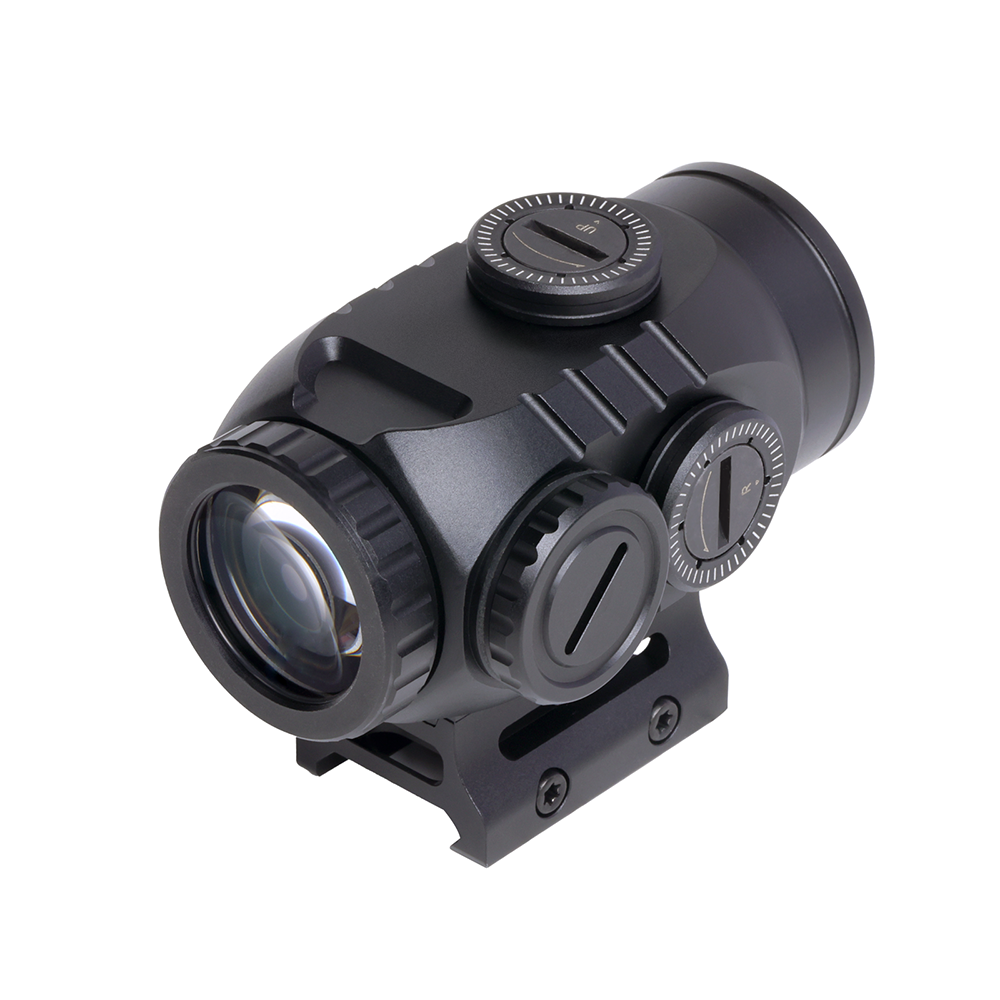

Red Win Corsac 5x30 SP Micro Prism Scope - Solar Power, Hight Light LED Red/Green Reticle, w/reminder, 1/4MOA Adjust for M855.
Features
Specification
Magnification: 5x
Objective Lens: 30mm
Lens Coating: Multi Coated
Reticle Type: AC30C (5.5 MOA Hollow Arrow, 30MOA Circle with BDC)
Brightness: Red, 8 Levels Day Light & 2 Levels Night Vision
Eye Relief: 66.4mm /2.6”
Parallax: ≤ 1MOA
Parallax Setting: 100 yds
Diopter Compensation: +/- 2.5
Adjustment Value: 1/4MOA
Windage Range of Adjustment: ＞ 40 MOA
Elevation Range of Adjustment: ＞ 40 MOA
Field of View (m): 7.7m at 100m
Field of View (ft): 23ft at 100yds
Recoil Test: 1200g’s (500 circle)
IP Standard: IPX67
Fog Proof: yes
Mount Type: Weaver/Picatinny
Battery Type: CR2032
Battery Life: ＞ 20000 Hours
Battery Voltage: 3 V
Operating Temperature: -20℃ - 40℃ （-4℉ - 104℉）
Length: 3.26 in (83mm)
Width: 2 in (50mm)
Height: 2.6 in (66.4mm)
Mounting System: T1/2 Universal
Axis Height (w/ original mount): 1.4 in (36mm)
Axis Height (w/ riser block): 1.6 in (40.4mm)
Net Weight(w/ original mount ): 284g (10 Oz)
Reticle
Package Including
Adjustment Allen x 1pr
Riser Mount x 1pc
4mm Riser Block x 1pc
Screws M3x10mm x 4pcs, M3x6.5mm x 4pcs
Cleaning Cloth x 1pc
Users Manual x 1pc
